10Mbps TNC - S53MV

In this page the 10 Mbps TNC developed by S53MV Matjaz Vidmar will be shown.
It is based on Motorola 68000 CPU and Infineon 82532 dual-SCC.
Take a look to an introduction about this project in Slovenian language!

Download the 68k BIN firmware or, if you prefere, download the 68k ASM source.

All images below can be enlarged just clicking on them.

Also, you can hear my relation, in MP3 format, about 10Mbps TNC and 5.7GHz UWBFM radio.

click to enlarge

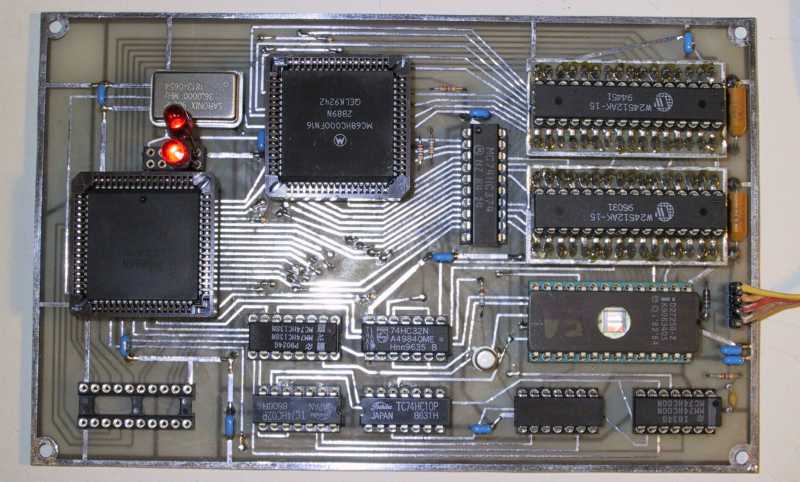

10 Mbps TNC

click to enlarge

click to enlarge

click to enlarge

PCB layout | PCB component layer | PCB solder layer

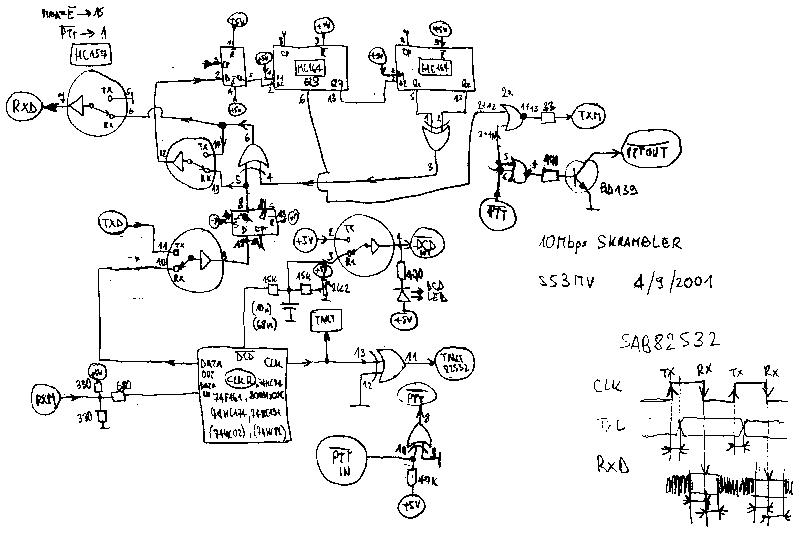

10 Mbps scrambler/syncronizer

click to enlarge

click to enlarge

click to enlarge

click to enlarge

PCB layout | PCB component layer | PCB solder layer
